1.3″128×64 PMOLED

Short Description:

Model Number:OHEM12864-05 Brand Name:OHEM Origin:China (mainland) Key Specifications/Special Features: 1.3-inch 128×64 30-pin PMOLED OLED white/blue optional customized Features: Small molecular organic light emitting diode (OLED) Self-luminous Color: white Panel matrix: 128*64 Driver IC: SH1106G Interface: parallel, 4-wire SPI, I2C Excellent quick response time: 10μS Extremely thin thickness for best mechanism design: 1.21 mm High contrast: 2000: 1 Wide viewing angle: 160° Wide ran...


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Model Number:OHEM12864-05

    Brand Name:OHEM

    Origin:China (mainland)

    Key Specifications/Special Features:

    1.3-inch 128×64 30-pin PMOLED OLED white/blue optional customized

    Features:

    Small molecular organic light emitting diode (OLED)
    Self-luminous
    Color: white
    Panel matrix: 128*64
    Driver IC: SH1106G
    Interface: parallel, 4-wire SPI, I2C
    Excellent quick response time: 10μS
    Extremely thin thickness for best mechanism design: 1.21 mm
    High contrast: 2000: 1
    Wide viewing angle: 160°
    Wide range operating temperature: -40 to 70°C
    Anti-glare polarizer
    High brightness, sunlight readable
    low power consumption
    Lifespan: 12000 hoursCustomized design and 24×7 technical supported
    For more information, please visit www.hesoled.com

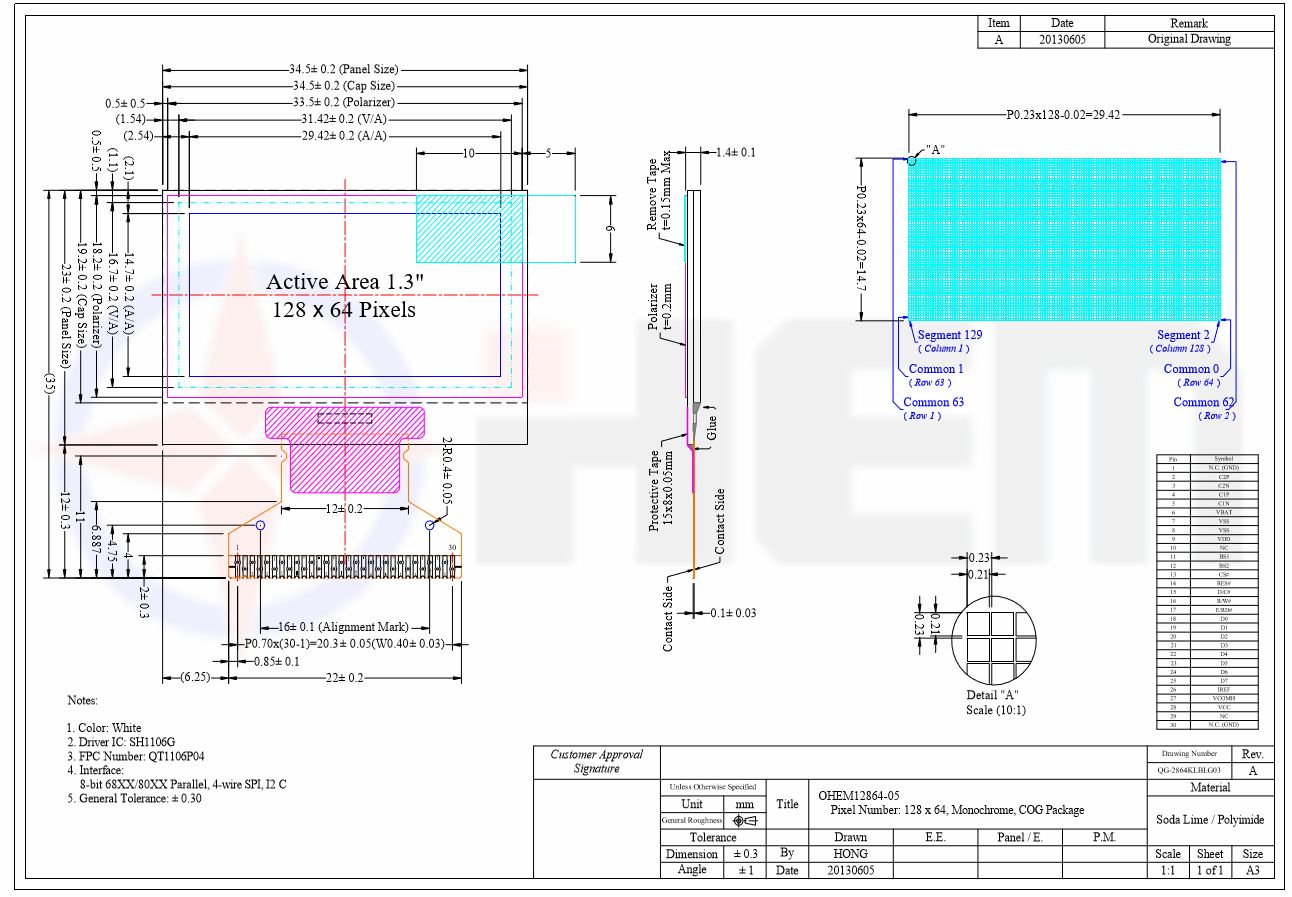

    Mechanical Data
    No  Item Specification Unit
    1  Dot Matrix  128 x 64 dot
    2  Dot Size  0.21 x 0.21 mm
    3 Dot Pitch  0.23 x 0.23 mm
    4  Active Area  29.42 x 14.7 mm
    5  Panel Size 34.50 x 23.0 mm
    6  Panel Thickness  1.40 mm
    7  Module Size 34.50 x 23.0 x 1.40 mm
    8  Diagonal A/A Size  1.30  inch
