240×128 Graphic LCD Display

Short Description:

240×128 Graphic LCD Displays Format : 240X128 Dots LCD mode : FSTN, Positive Transflective Mode Viewing direction : 6 o’clock Driving scheme : 1/128 Duty, 1/12 Bias Low power operation : Power supply voltage range (VDD): 3.3V VLCD adjustable for best contrast : LCD driving voltage (VOP): 16.0V Operating temperature : -40℃~75℃ Storage temperature : -40℃~75℃ Backlight : 6pcs WHITE side LED (If=80mA) Controller : COG/ST75256 Module size : 144mm(L)*104mm(W) *9mm(H) Viewing area : 114mm(L)*...


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    240×128 Graphic LCD Displays

    Format : 240X128 Dots
    LCD mode : FSTN, Positive Transflective Mode
    Viewing direction : 6 o’clock
    Driving scheme : 1/128 Duty, 1/12 Bias
    Low power operation : Power supply voltage range (VDD): 3.3V
    VLCD adjustable for best contrast : LCD driving voltage (VOP): 16.0V
    Operating temperature : -40℃~75℃
    Storage temperature : -40℃~75℃
    Backlight : 6pcs WHITE side LED (If=80mA)
    Controller : COG/ST75256

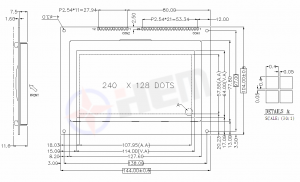

    HEM240128-08 Drawing
    Module size : 144mm(L)*104mm(W) *9mm(H)
    Viewing area : 114mm(L)*64mm(W)
    Dot pitch : 0.45mm(L)*0.45mm(W)
    Dot size : 0.4mm(L)*0.4mm(W)
    BLOCK DIAGRAM

    HEM240128-08 Black Diagram

    240128 LCD display Pins

    Samples in stock, Welcome to contact our sales for samples.
